Wired Lily58 Pro build for a colleague!
Components used - PCB was already soldered at this point.

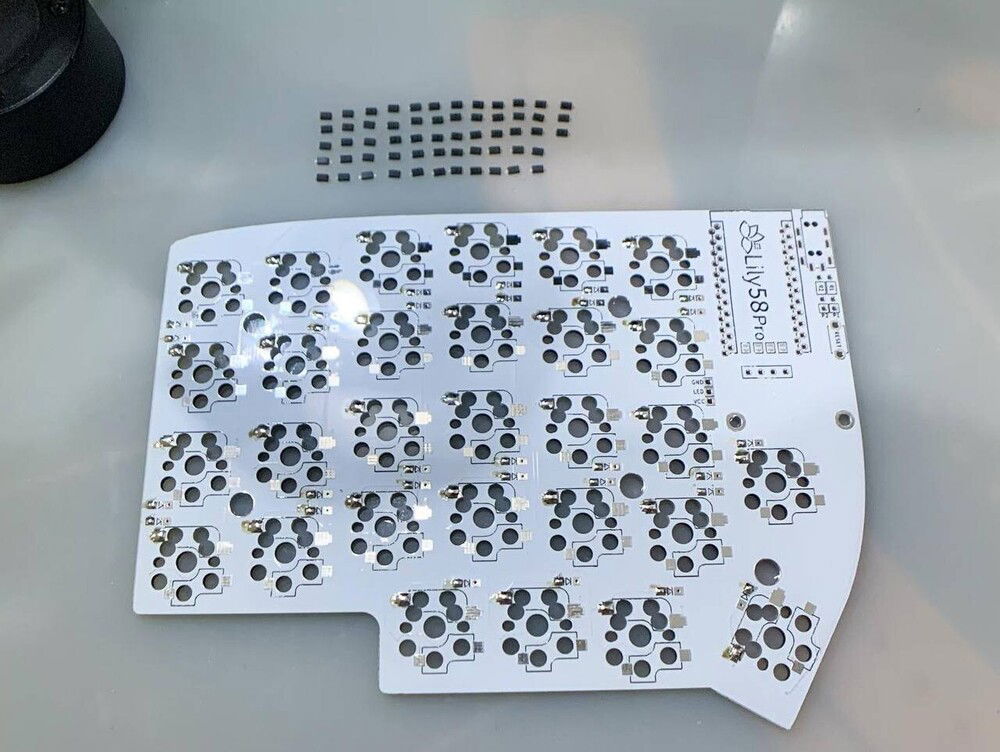

Lining up diodes so that it's easier for me to pick and solder without squinting to check polarity :p
White Lily58 Pro with Boba U4T 62G and MT3 WOB Keycaps
A wired split keyboard build for my colleague. He asked for something simple and unassuming for work.
Keyboard specs
- White Lily58 Pro Hotswap Kit
- Type-C Pro Micro MCUs (socketed)
- Clear Acrylic OLED covers
- OLEDs (socketed)
- White FR4 plate
- Gazzew Boba U4T 62g - lubed housings, stems, and donut dipped springs in Tribosys 3203
- MT3 White on Black Keycaps
- Hand cut EVA case foam
- Custom white/silver cable with aviator connector
Components that are not listed in hardware price list:
- 2x Type-C Arduino clones
- 2x OLEDs
- TRRS and reset switches
- Millmax pins and sockets
- Taller standoffs (stock standoffs that came with Lily58 kit was not tall enough for my socketed OLEDs)
Keyboard specs
- White Lily58 Pro Hotswap Kit
- Type-C Pro Micro MCUs (socketed)
- Clear Acrylic OLED covers
- OLEDs (socketed)
- White FR4 plate
- Gazzew Boba U4T 62g - lubed housings, stems, and donut dipped springs in Tribosys 3203
- MT3 White on Black Keycaps
- Hand cut EVA case foam
- Custom white/silver cable with aviator connector
Components that are not listed in hardware price list:
- 2x Type-C Arduino clones
- 2x OLEDs
- TRRS and reset switches
- Millmax pins and sockets
- Taller standoffs (stock standoffs that came with Lily58 kit was not tall enough for my socketed OLEDs)
Color(s): Black Silver White
RGB Lighting? No
Keyboard Type: Custom
Hardware
Keyboard
$ 37.00
Keycaps
$ 32.50
Lube
$ 7.31
Estimated total value of this build:
$ 135.50
